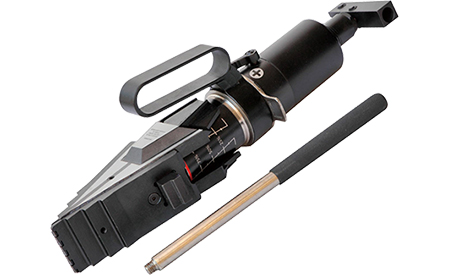

Hydraulic Flange Spreaders FHP-25
The Innovative Range of Flange Spreading Wedges have been developed to assist in the spreading of all flange joint types with a minimum access gap of 6 mm. The tools can be used during pipework construction, commissioning or during routine maintenance.
- Integrated wedge concept: friction-free, smooth, parallel wedge movement eliminates flange damage and spreading arm failure
- Unique interlocking wedge design: no first step bending and risk of slipping out of joint
- Horizontally or vertically according to the working
- Stepped spreader arm design: each step can spread under full load
- Few moving parts mean durability and low maintenance
| Maximum spreading force | 25 ton |
| Tip clearance | 6 mm |
| Maximum spread with safety blocks | 104 mm |
| Maximum spread with stepped blocks | 120 mm |
Flange Spreader Technology
Flange spreading process is starting with 90° angle. Spreading-pushing force is applied directly to the flange surface and allows the opening of the flange without contraction. Sealing is never damaged.
A scale is applied to the instrument for a clear visualization of the degree of spreading.
Standard Kit
1 x Hydraulic Spreading Wedge Assembly
1 x Set of Safety Blocks
1 x Pair of Stepped Blocks
1 x Lanyard
1 x Hex Key
1 x Carry Case
Gross Weight: 13.8 kg
