Hydraulic Skidding System
Hydraulic skidding system is an industrial equipment designed for moving large-sized, heavy-weight equipment, structures with interception on railway rails or T-beams.

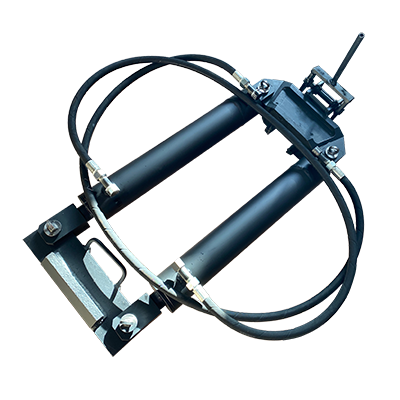

Specifications of the hydraulic pusher
The equipment is designed for horizontal movement of heavy equipment on rails when performing rigging operations.
| Capacity, ton. | 20 |
| Length of the piston stroke, mm | 400 |
| The diameter of the piston, mm | 80 |
| Hydraulic cylinders, pcs. | 2 |
| Return of the piston | yes |
| Base Size, mm | 1100х330х350 |
| Weight, kg | 65 |
When using 4 pushers at the same time, the developed force is 80 tons.
According to the individual requirements of the customer, the equipment is equipped with one to four pushers for simultaneous use, and our company also accepts orders for the manufacture of pushers with a lifting capacity of up to 800 tons based on technical specifications or sketches.

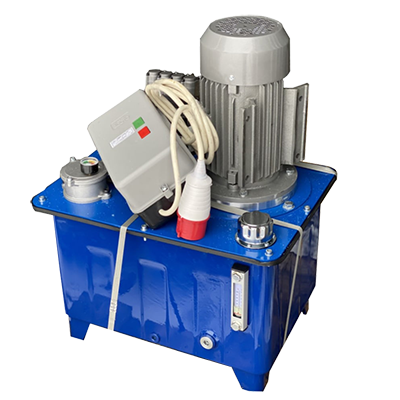

Specifications of the controlled pump
The electric pump is designed for simultaneous maintenance of up to 4 hydraulic pushers or 8 high-pressure hydraulic cylinders, which, for example, can be used in a complex of synchronous lifting of objects.
| Pressure, MPa (bar) | 20 (200) |
| Motor power, kW | 4 |
| Tank, l | 70 |
| Capacity, l/min. | 9 |
| Number of Outlets | 4 |
| Pump Control | manual 3-position valve |
Pumps are equipped with an oil level monitoring system, a safety valve and a pressure gauge.

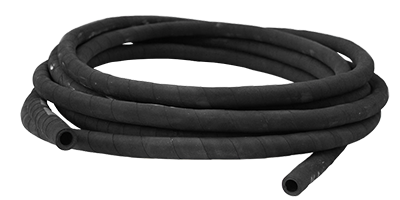

Specifications of the hoses
High-pressure hoses are manufactured in accordance with DIN and SAE standards with a conditional passage (internal diameter) of 8 mm.
The connecting size of the nut for connection to hydraulic cylinders is M20×1.5
Connection size of the nut for connection to hydraulic cylinders - G⅜
Nominal pressure - 25 MPa (250 bar)
The standard length is 8 meters.
At the request of the customer, the length can be changed in the direction of increasing or decreasing by a multiple of 1.0 meters.
