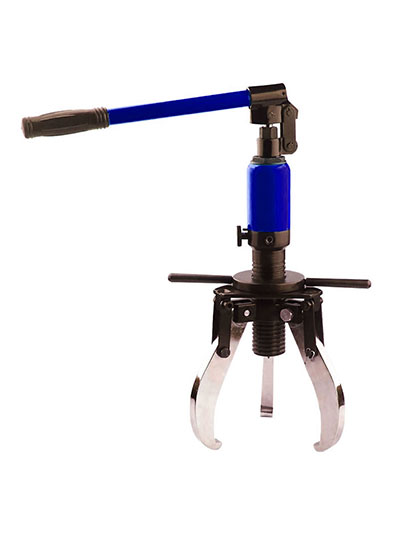

Series 3200CTA
- 3 jaws pullers.
- Safety cage jaw retention system.
- High strength hydraulic system allows effortless pulling of large components.
- Adjustable jaw retention system.
- Only one man required for operation.
- The self centering puller is safe thanks to it´s jaw lock device in max spread position.
| Ref. | Spread range | Distance max. | Stroke | Ton. | Weigth |
|---|---|---|---|---|---|
| 3205CTA | 50-250 | 170 | 50 | 5 | 13,8 |
| 3210CTA | 50-300 | 200 | 60 | 10 | 15,1 |
| 3215CTA | 100-400 | 230 | 70 | 15 | 10,4 |
