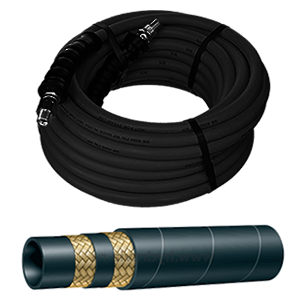

Hydraulic High-Pressure Hose CS Series
Scope of application: hydraulic lines using fuel, oil, antifreeze, air and water.
Inner layer: synthetic rubber, resistant to oils.
Reinforcement: two high-strength metal braids.
Outer layer: abrasive-resistant synthetic rubber, resistant to oil, fuel, precipitation, ultraviolet radiation.
Operating temperature: -40°C to +100°C.
| Model | Internal Diameter | End Coupler | Maximum Operating Pressure, bar |
Pressure to Rupture, bar |
Bending Radius, mm |
Oil Capacity, cm³ |
Length, m | Weight, kg | |
| in | mm | ||||||||
| CS1414 | 1/4 | 6.35 | 1/4"-18NPTF | 700 | 2800 | 100 | 60 | 1.8 | 0.9 |
| CS3814 | 1/4 | 6.35 | 3/8"-18NPTF | 700 | 2800 | 100 | 60 | 1.8 | 1.0 |
| CS3814A | 1/4 | 6.35 | 3/8"-18NPTF | 700 | 2800 | 100 | 20 | 0.6 | 0.5 |
| CS3814B | 1/4 | 6.35 | 3/8"-18NPTF | 700 | 2800 | 100 | 30 | 0.9 | 0.7 |
| CS3814C | 1/4 | 6.35 | 3/8"-18NPTF | 700 | 2800 | 100 | 100 | 3.0 | 1.4 |
| CS3814D | 1/4 | 6.35 | 3/8"-18NPTF | 700 | 2800 | 100 | 200 | 6.1 | 2.8 |
| CS3814E | 1/4 | 6.35 | 3/8"-18NPTF | 700 | 2800 | 100 | 300 | 9.1 | 4.5 |
| CS3814 | 3/8 | 9.52 | 1/4"-18NPTF | 700 | 2800 | 150 | 130 | 1.8 | 1.6 |
| CS3838 | 3/8 | 9.52 | 3/8"-18NPTF | 700 | 2800 | 150 | 130 | 1.8 | 1.7 |
| CS3838C | 3/8 | 9.52 | 3/8"-18NPTF | 700 | 2800 | 150 | 220 | 3.0 | 2.4 |
| CS3838D | 3/8 | 9.52 | 3/8"-18NPTF | 700 | 2800 | 150 | 440 | 6.1 | 4.5 |
| CS3838E | 3/8 | 9.52 | 3/8"-18NPTF | 700 | 2800 | 150 | 650 | 9.1 | 7.3 |
| CS3838F | 3/8 | 9.52 | 3/8"-18NPTF | 700 | 2800 | 150 | 1085 | 15 | 11.5 |
