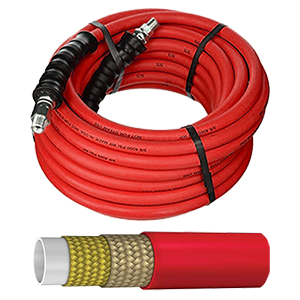

Hydraulic High-Pressure Hose CT Series
Scope of application: hydraulic lines using fuel, oil, antifreeze, air and water. Ideal for working with hydraulic tools.
Inner layer: thermoplastic polyamide.
Reinforcement: a braid of high-strength polyester fiber and a braid of high-strength steel wire.
Outer layer: polyurethane thermoplastic, resistant to external influences.
Operating temperature: -40°C to +100°C.
| Model | Internal Diameter | End Coupler | Maximum Operating Pressure, bar |
Pressure to Rupture, bar |
Bending Radius, mm |
Oil Capacity, cm³ |
Length, m | Weight, kg | |
| in | mm | ||||||||
| CT1414 | 1/4 | 6.35 | 1/4"-18NPTF | 700 | 2800 | 75 | 60 | 1.8 | 0.9 |
| CT3814 | 1/4 | 6.35 | 3/8"-18NPTF | 700 | 2800 | 75 | 60 | 1.8 | 1.0 |
| CT3814B | 1/4 | 6.35 | 3/8"-18NPTF | 700 | 2800 | 75 | 30 | 0.9 | 0.7 |
| CT3814C | 1/4 | 6.35 | 3/8"-18NPTF | 700 | 2800 | 75 | 100 | 3.0 | 1.4 |
| CT3814D | 1/4 | 6.35 | 3/8"-18NPTF | 700 | 2800 | 75 | 200 | 6.1 | 2.8 |
| CT3814E | 1/4 | 6.35 | 3/8"-18NPTF | 700 | 2800 | 75 | 300 | 9.1 | 4.5 |
| CT3814 | 3/8 | 9.52 | 1/4"-18NPTF | 700 | 2800 | 120 | 130 | 1.8 | 1.6 |
| CT3838 | 3/8 | 9.52 | 3/8"-18NPTF | 700 | 2800 | 120 | 130 | 1.8 | 1.7 |
| CT3838C | 3/8 | 9.52 | 3/8"-18NPTF | 700 | 2800 | 120 | 220 | 3.0 | 2.4 |
| CT3838D | 3/8 | 9.52 | 3/8"-18NPTF | 700 | 2800 | 120 | 440 | 6.1 | 4.5 |
| CT3838E | 3/8 | 9.52 | 3/8"-18NPTF | 700 | 2800 | 120 | 650 | 9.1 | 7.3 |
| CT3838F | 3/8 | 9.52 | 3/8"-18NPTF | 700 | 2800 | 120 | 1085 | 15 | 11.5 |
