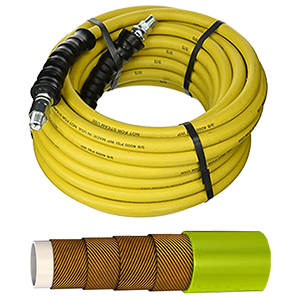

Hydraulic High-Pressure Hose JH Series
Scope of application: hydraulic lines using fuel, oil, antifreeze, air and water. Ideal for working with hydraulic cylinders.
Inner layer: thermoplastic polyamide.
Reinforcement: four-layer braid made of high-strength steel wire.
Outer layer: polyurethane thermoplastic, resistant to external influences.
Operating temperature: -40°C to +100°C.
| Model | Internal Diameter | End Coupler | Maximum Operating Pressure, bar |
Pressure to Rupture, bar |
Bending Radius, mm |
Length, m | Weight, kg | |
| in | mm | |||||||
| single hydraulic hoses | ||||||||
| JH7445 | 6.4 | 12.5 | 1/4"-NPT | 720 | 2880 | 70 | 4.5 | 1.1 |
| JH7460 | 6.4 | 12.5 | 1/4"-NPT | 720 | 2880 | 70 | 6.0 | 1.5 |
| JH7490 | 6.4 | 12.5 | 1/4"-NPT | 720 | 2880 | 70 | 9.0 | 2.25 |
| JH74100 | 6.4 | 12.5 | 1/4"-NPT | 720 | 2880 | 70 | 10.0 | 2.5 |
| JH7818 | 6.3 | 13.3 | 3/8"-NPT | 1000 | 3200 | 80 | 1.8 | 0.63 |
| JH7845 | 6.3 | 13.3 | 3/8"-NPT | 1000 | 3200 | 80 | 4.5 | 1.38 |
| JH7890 | 6.3 | 13.3 | 3/8"-NPT | 1000 | 3200 | 80 | 9.0 | 2.75 |
| JH78120 | 6.3 | 13.3 | 3/8"-NPT | 1000 | 3200 | 80 | 12.0 | 3.66 |
| double hydraulic hoses | ||||||||
| 2JH6445 | 6.4 | 12.5 | 1/4"-NPT | 720 | 2880 | 70 | 4.5 | 2.2 |
| 2JH6460 | 6.4 | 12.5 | 1/4"-NPT | 720 | 2880 | 70 | 6.0 | 3.0 |
| 2JH6490 | 6.4 | 12.5 | 1/4"-NPT | 720 | 2880 | 70 | 9.0 | 4.5 |
| 2JH64100 | 6.4 | 12.5 | 1/4"-NPT | 720 | 2880 | 70 | 10.0 | 5.0 |
