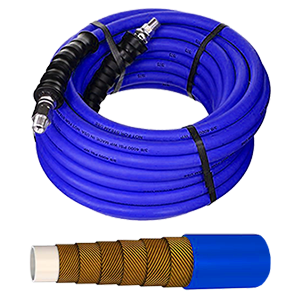

Hydraulic High-Pressure Hose BH Series
Scope of application: hydraulic lines using fuel, oil, antifreeze, air and water. Ideal for working with tensor jacks.
Inner layer: thermoplastic polyamide.
Reinforcement: 4 or 6 layers of high-strength steel wire braid.
Outer layer: polyurethane thermoplastic, resistant to external influences.
Operating temperature: -40°C to +100°C.
| Model | Internal Diameter | End Coupler | Maximum Operating Pressure, bar |
Pressure to Rupture, bar |
Bending Radius, mm |
Length, m | Weight, kg | |
| in | mm | |||||||
| BH8420 | 4.7 | 11.5 | 1/4"-BSP | 1800 | 4500 | 130 | 2.0 | 0.56 |
| BH8460 | 4.7 | 11.5 | 1/4"-BSP | 1800 | 4500 | 130 | 6.0 | 1.68 |
| BH8490 | 4.7 | 11.5 | 1/4"-BSP | 1800 | 4500 | 130 | 9.0 | 2.52 |
| BH84120 | 4.7 | 11.5 | 1/4"-BSP | 1800 | 4500 | 130 | 12.0 | 3.36 |
| BH9430 | 4.7 | 13.0 | 1/4"-BSP | 2800 | 6250 | 175 | 2.0 | 0.82 |
| BH9460 | 4.7 | 13.0 | 1/4"-BSP | 2800 | 6250 | 175 | 6.0 | 2.46 |
| BH9490 | 4.7 | 13.0 | 1/4"-BSP | 2800 | 6250 | 175 | 9.0 | 3.69 |
| BH94120 | 4.7 | 13.0 | 1/4"-BSP | 2800 | 6250 | 175 | 12.0 | 4.92 |
