Pump Mounted Directional Control Valves

Hydraulic valves are designed to control the pressure in the drive in accordance with the control mechanism and protect the system from overloads. They are installed on hydraulic pumping stations and pumps with mechanical drive.

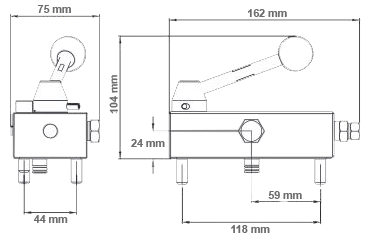

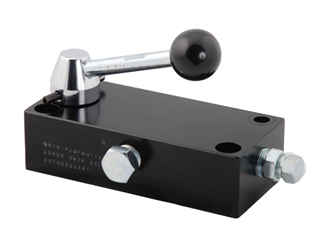

Directional Control Valve PW2

Directional Control Valve PW2

Directional Control Valve PW2

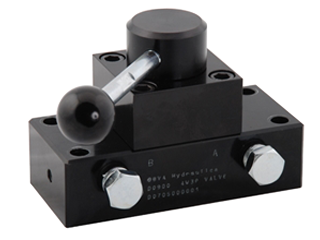

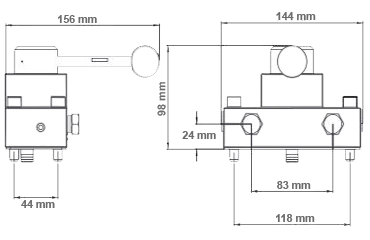

Directional Control Valve PW3/PW4

Directional Control Valve PW3/PW4

Directional Control Valve PW3/PW4

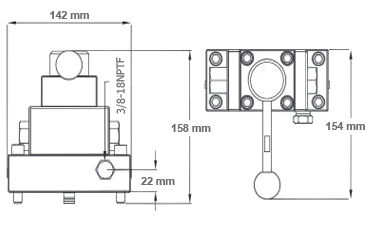

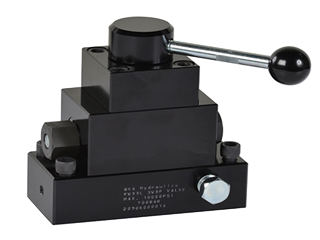

Directional Control Valve PW33L

Directional Control Valve PW33L

Directional Control Valve PW33L

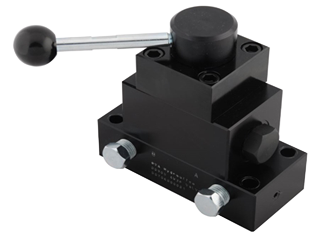

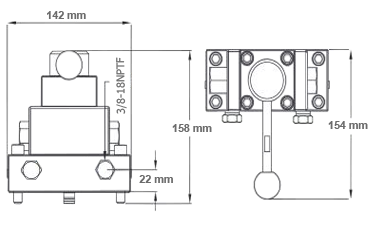

Directional Control Valve PW43L

Directional Control Valve PW43L

Directional Control Valve PW43L

Valve Type Model Cylinder Compatibility Hydraulic Symbol Schematic Flow Path Weight, kg
Advance Hold Retract
3-Way, 2-Position PW2 Single Acting Hydraulic Symbol Schematic Flow path Schematic Flow path — 1.81
3-Way, 3-Position, Tandem center PW3 Single Acting Hydraulic Symbol Schematic Flow path Schematic Flow path Schematic Flow path 1.81
4-Way, 3-Position, Tandem center PW4 Double Acting Hydraulic Symbol Schematic Flow path Schematic Flow path Schematic Flow path 1.36
3-Way, 3-Position, Tandem center, Locking PW33L Single Acting Hydraulic Symbol Schematic Flow path Schematic Flow path Schematic Flow path 2.72
4-Way, 3-Position, Tandem center, Locking PW43L Double Acting Hydraulic Symbol Schematic Flow path Schematic Flow path Schematic Flow path 2.72
