Remote Mounted Directional Control Valves

Designed for remote pressure control in a hydraulic drive in accordance with the control mechanism and overload protection of the system, they are used in drives of machine tools, presses, foundry and injection molding machines, mobile equipment, etc.

Remote Control Valve PR33

Remote Control Valve PR33

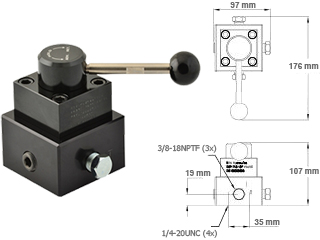

Remote Control Valve PR33C

Remote Control Valve PR33C

Remote Control Valve PR33L

Remote Control Valve PR33L

Remote Control Valve PR33CL

Remote Control Valve PR33CL

Remote Control Valve PR43

Remote Control Valve PR43

Remote Control Valve PR43C

Remote Control Valve PR43C

Remote Control Valve PR43L

Remote Control Valve PR43L

Remote Control Valve PR43CL

Remote Control Valve PR43CL

Valve Type Model Cylinder Compatibility Hydraulic Symbol Schematic Flow Path Weight, kg
Advance Hold Retract
3-Way, 3-Position,
Tandem center		 PR33 Single Acting Hydraulic Symbol Schematic Flow Path Schematic Flow Path Schematic Flow Path 1.6
3-Way, 3-Position,
Closed center		 PR33C Hydraulic Symbol Schematic Flow Path Schematic Flow Path Schematic Flow Path 1.6
3-Way, 3-Position,
Tandem center,
Locking		 PR33L Hydraulic Symbol Schematic Flow Path Schematic Flow Path Schematic Flow Path 2.6
3-Way, 3-Position,
Closed center,
Locking		 PR33CL Hydraulic Symbol Schematic Flow Path Schematic Flow Path Schematic Flow Path 2.6
4-Way, 3-Position,
Tandem center		 PR43 Double Acting Hydraulic Symbol Schematic Flow Path Schematic Flow Path Schematic Flow Path 1.6
4-Way, 3-Position,
Closed center		 PR43C Hydraulic Symbol Schematic Flow Path Schematic Flow Path Schematic Flow Path 1.6
4-Way, 3-Position,
Tandem center,
Locking		 PR43L Hydraulic Symbol Schematic Flow Path Schematic Flow Path Schematic Flow Path 2.6
4-Way, 3-Position,
Closed center,
Locking		 PR43CL Hydraulic Symbol Schematic Flow Path Schematic Flow Path Schematic Flow Path 2.6
