Pressure Gauge Adapters & Specialty Fittings
Pressure gauge adapters and special fittings allow direct connection of a separate metric tube to a pressure gauge or similar hydraulic tester. They are manufactured in accordance with ISO 8434-1 / DIN 2353 and are suitable for high-pressure hydraulic systems.

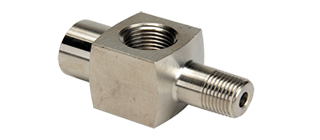

Pressure Gauge Fitting CF3812
Gauge Port: 1/2" - 14 NPTF
Oil Port: 3/8" - 18 NPTF
Rated Pressure: 10 000 PSI / 700 bar
Overall Length: 72 mm

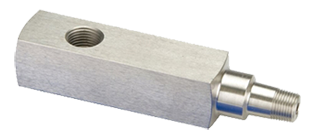

Pressure Gauge Fitting CF3812E
Gauge Port: 1/2" - 14 NPTF
Oil Port: 3/8" - 18 NPTF
Rated Pressure: 10 000 PSI / 700 bar
Overall Length: 155 mm

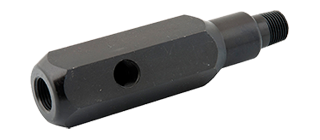

Pressure Gauge Fitting CF3814
Gauge Port: 1/4" - 18 NPTF
Oil Port: 3/8" - 18 NPTF
Rated Pressure: 10 000 PSI / 700 bar
Overall Length: 130 mm

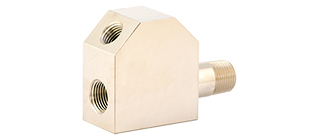

Pressure Gauge Fitting CF4514
Gauge Port: 1/4" - 18 NPTF
Oil Port: 3/8" - 18 NPTF
Rated Pressure: 10 000 PSI / 700 bar
Overall Length: 78 mm
Hydraulic adaptors and fittings provide easy mounting of a pressure gauge into your system. Ideal for use on temperature gauges, data acquisition systems, sampling ports and many other uses.
