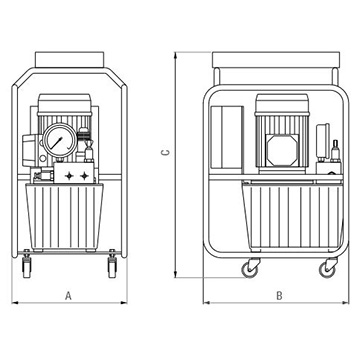

Air Powered Hydraulic Pump P3054
- The transport cage guarantee all-round protection and easy handling.
- Two-speed operation reduces cycle time for improved productivity.
- Standard for this model are: heat exchanger, quad block manifold and oil return filter.
- Various accessories are available: automatic cycle, quick-release connections and double hose.
- All the pumps are equipped with pressure gauge, which minimizes the risk of overloading and ensure long, dependable service.
| Power rating (HP) | Working pressure (bar) | Flow rate (l/min) | Usable oil capacity (l) | Dimensions (mm) | Weight (kg) | ||||
| Low pressure stage | High pressure stage | Low pressure stage | High pressur stage | A | B | C | |||
| 3.0 | 80 | 700 | 5.4 | 2.0 | 10 | 350 | 450 | 600 | 34 |
