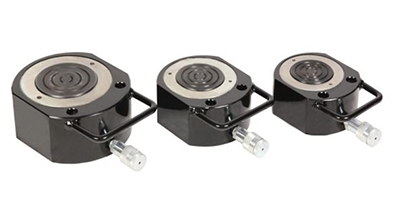

Low Profile Single Acting Cylinders
Single acting low height hydraulic cylinder is widely used in power station, ship manufacturing and maintenance, building, railway, mining, steel plant, cement plants, petrochemical and other industries.
- For use in confined spaces: machinery positioning, tool fastening
- Two versions: for load return and spring return
- With two parallel faces for horizontal operation
- Mounting bolt holes for easy fixing
- Black nitrated to improve corrosion and side load resistance

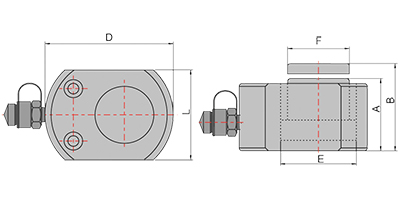

| Model | Capacity (ton.) | Stroke (mm) |
Oil capacity (cm³) | Closed height A (mm) |
Total height B (mm) |
Outside Dia. D (mm) |
Width L (mm) |
Cylinder Bore Dia. E (mm) |
Plunger Dia. F (mm) |
Weight (kg) |
| SMX104810 | 10 | 10 | 16 | 48 | 58 | 83 | 60 | 45 | 38 | 1.6 |
| SMX205611 | 20 | 11 | 34 | 56 | 67 | 99 | 78 | 60 | 50 | 2.7 |
| SMX306213 | 30 | 13 | 55 | 62 | 75 | 123 | 98 | 75 | 64 | 4.6 |
| SMX307216 | 50 | 16 | 101 | 72 | 88 | 148 | 120 | 95 | 70 | 7.8 |
| SMX1009116 | 100 | 16 | 200 | 91 | 107 | 180 | 160 | 135 | 100 | 16.8 |
| SMX15010016 | 150 | 16 | 342 | 100 | 116 | 215 | 190 | 165 | 115 | 27.0 |
| SMX20011020 | 200 | 20 | 567 | 110 | 130 | 255 | 244 | 190 | 135 | 42.0 |
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
